2500w 48v 1500rpm brushless dc servo motor for AGV Crawer robot

130mm frame 2500w 48v brushless dc servo motor

Product Overview

1. Protection grade: IP55, insulation grade: F

2. Winding overhang structure optimization, to minimize the copper loss and iron loss minimization, small volume, light weight, low temperature rise, high efficiency
3. Super high coercivity, the maximum magnetic energy product NdFe35 permanent magnetic materials, strong resistance to demagnetization, motor performance is stable.
4. Low noise, low vibration, low moment of inertia.
5. High torque, fast dynamic response, wide speed range, strong overload capacity (four times)

Product Features
1. High Torque to inertia ratio&up to 25000Nm/kgm2
2. Fast dynamic response *time constant <20ms
3. Wide speed adjusting&feedback up to 1000:1
4. Steady speed precision up to 0.5%
5. High overload, 2Mn/30s,3 .5N.m/10s
6. Small volume and light
7. Silent,the lowest noise is only 45dB(A)
8. Protected with IP55,Class F insulation

Industry class
1.The altitude should be over 1000 meters above sea level
2.Environment temperature:-25℃~+50℃
3.The month average tallest relative humidity is 90%,at the same the month average lowest temperature is less than 25℃

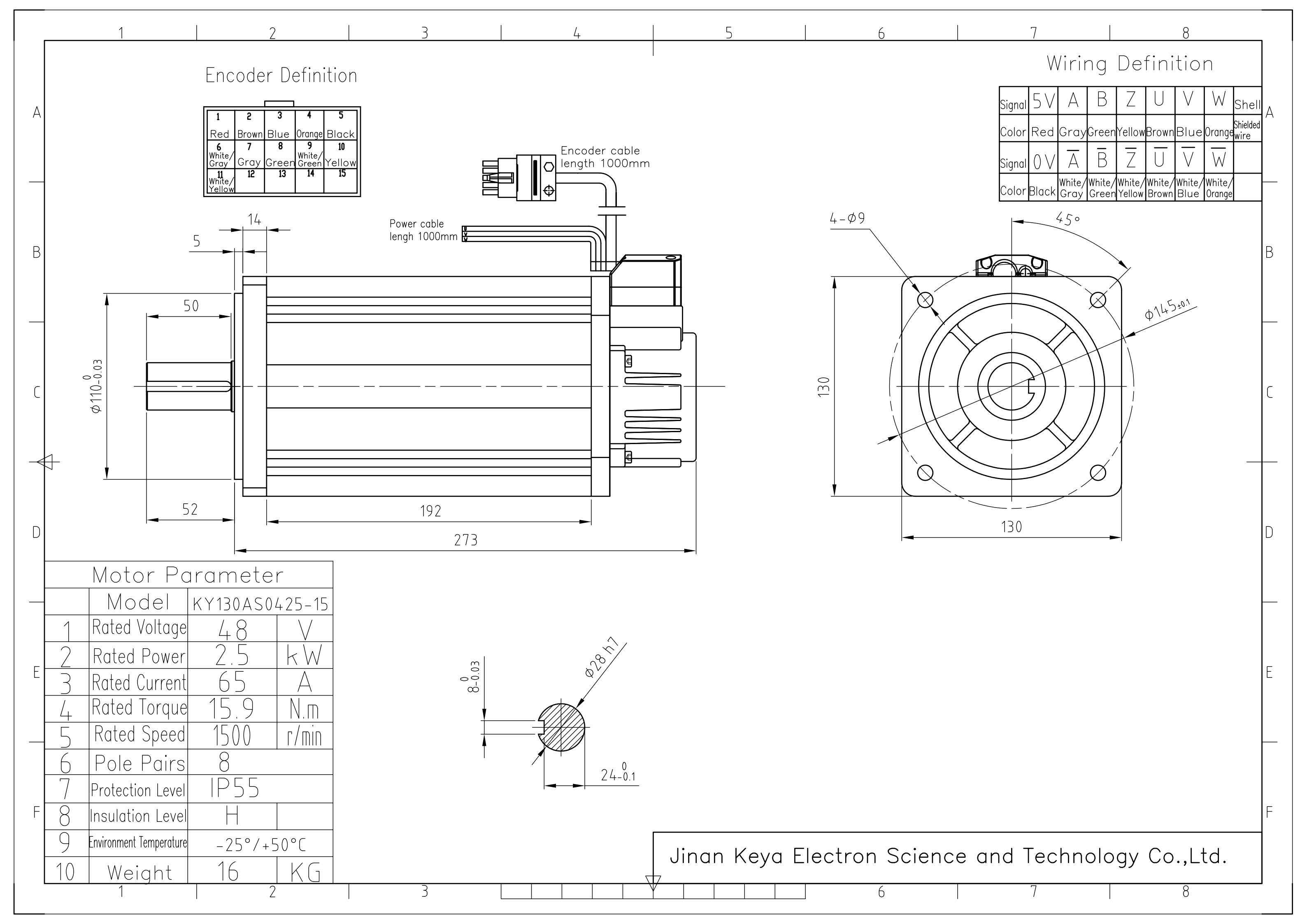

• Datasheet


• Connect cable

Notice: the standard motor don't have brake, if you need brake, kindly advise.

• Related servo motor


• Applicatin

It has been widely used for many applications, eg., Mobile robot, Automatic Guided Vehicle,smart self driving robot vehicle platforms/kits,caterpillar lifting platform,Fire fighting Robot etc. It has better performances than other traditional dc motors.
