KY170DD01005-08
KEYA
KY170DD01005-08
This eletric motor adopt direct drive motor scheme designe, the rated speed is 80rpm, you can install it to the steering wheel shaft directly. It built in controller, support RS232, CAN control, the rated voltage is 12V, rated torque is 7N.m, the peak torque reach 16N.m, it is widely used in electric power steering system for self-driving robot tractor, it is for Forklift truck Roller and Bulldozer.
Specification
| Product name | Automatic steering wheel motor |
| Application | Forklift truck ,Roller ,Bulldozer. |
| Voltage | 12V |
| Rated torque | 7N.m |
| Peak torque | 16N.m |
| Rated current | 10A |
| Rated power | 50W |
| Rated speed | 80rpm-100rpm |
| Control signal | RS232, CAN2.0 |
| Feedback | 48000ppr Incremental Encoder |
| Protection grade | IP55 |
| Weight | 5.5KG |

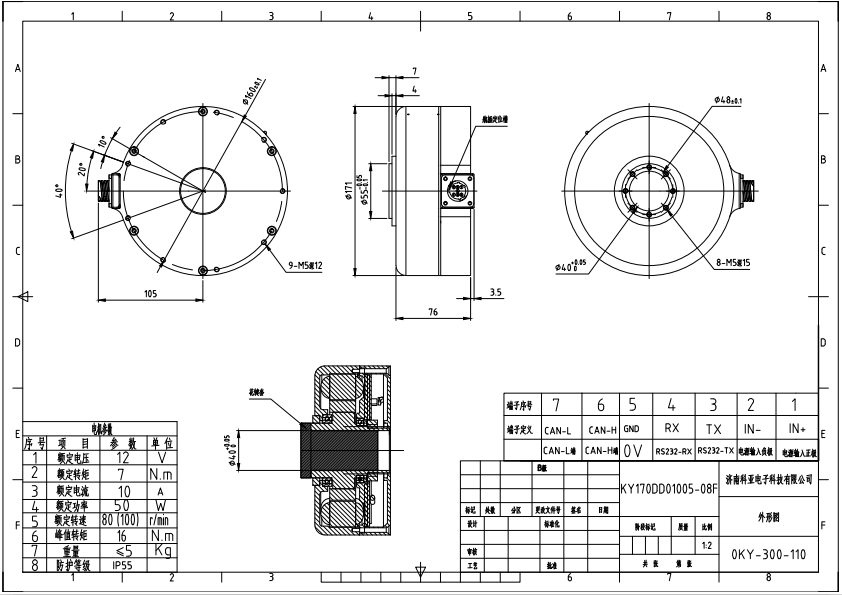

Interface Definition
| 1 | IN+ | Power input + |
| 2 | IN- | Power input - |
| 3 | TX | RS232-TX |
| 4 | RX | RS232-RX |
| 5 | GND | GROUND |
| 6 | CAN-H | CAN-H |
| 7 | CAN-L | CAN-L |
Products Application Cases Display
The torque of the direct drive servo motor increases in proportion to the input current and does not change with speed and angular position. The relationship between torque and current is linear. Multi-pole structure design, low motor torque ripple coefficient, stable operation, can effectively reduce the "S" curve amplitude when the vehicle is going straight.
The direct drive design of the servo motor enables gearless transmission. The ratio of torque to inertia on the load shaft is much better than gear transmission, which greatly improves the acceleration capability of the system, and greatly improves the ability to go online quickly in applications and the ability to correct errors under high-speed vehicle operation.
Roller
Bulldozer
